Structural Detailing


STHAPONA CONSULTANTS LIMITED has experienced and expertise in all aspects of structural steel detailing services.  Our steel detailers are efficient in using the latest steel detailing technology including the 3D computer modelling system like Tekla Structures, Autodesk Advance Steel, Revit Structure, SDS/2 and Auto CAD to prepare high quality and accurate steel fabrication drawings and shop drawings. We follow AISC, ASCE standards to produce high quality drawings, customized to accommodate client's shop requirements.  Our structural steel detailing services include:

  • Concrete Detailing

  • Anchor Bolts Setting Plan

  • Base plate details

  • Erection Drawings

  • Structural Steel Design

  • Steel Fabrication Drawings

  • Connection Details - Welded, Riveted or Bolted for special moment resisting or ordinary moment resisting frames

  • Steel member Detail Drawings - for columns, beams and bracings with location of bolt holes and connecting members

  • Bill of materials

  • CNC (Computer numerical control) files

  • Field and Shop Bolt Summary

  • Steel Trusses member and connection details

  • Rails, Stair and Ladders

  • A variety of other items of the main structure

We provide structural steel detailing services for oil, gas and petrochemical industries, commercial, industrial and institutional buildings, hospitals, warehouses etc.

STRUCTURAL DETAILING PHOTOS

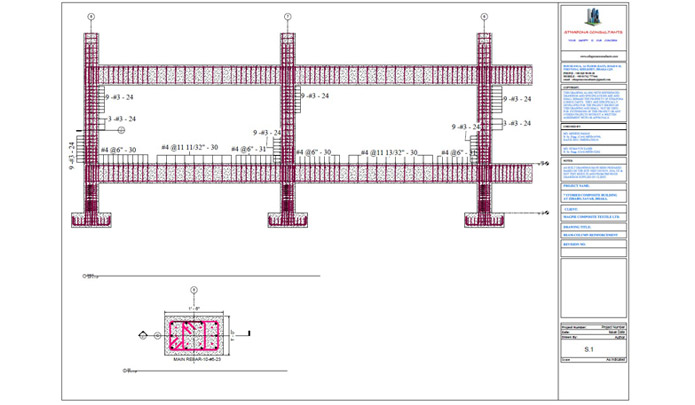

  • DETAILING-IN-REVIT-STRUCTURE

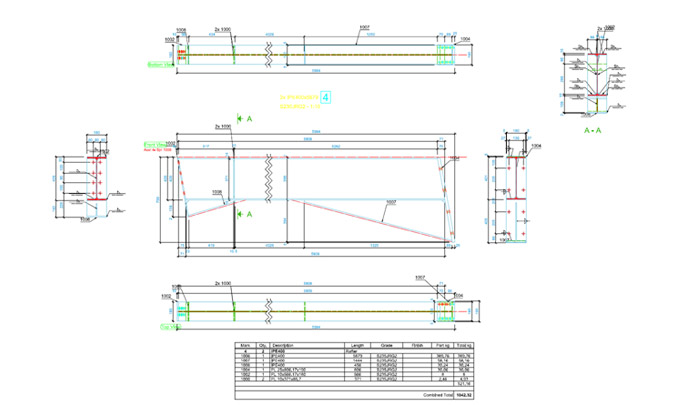

  • DETAILS DRAWING PRESENTATION SAMPLE 1

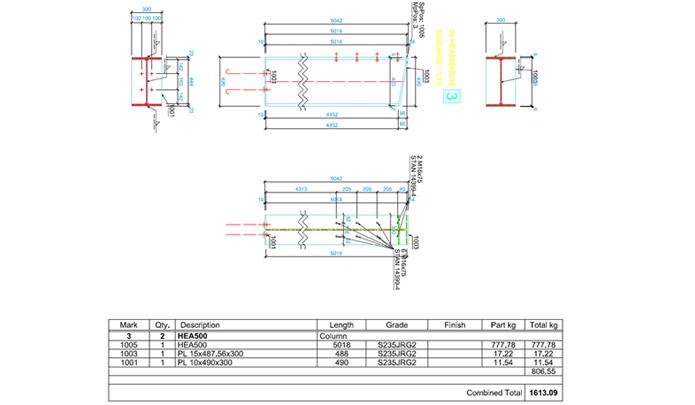

  • DETAILS DRAWING PRESENTATION SAMPLE 2

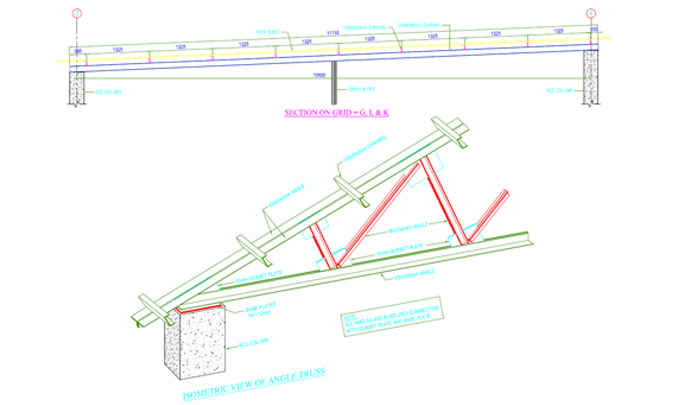

  • DETAILS DRAWING PRESENTATION SAMPLE 3

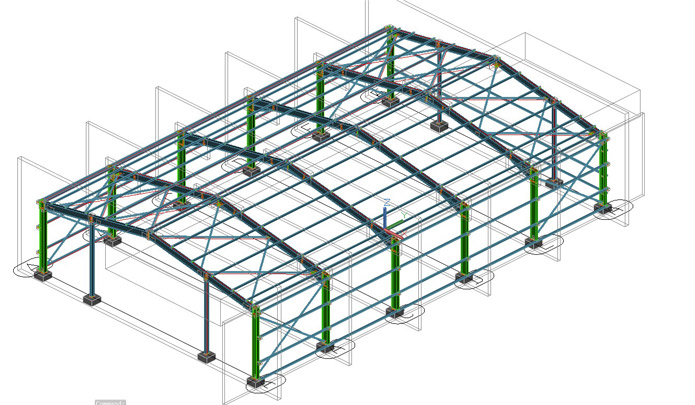

  • MODELING-IN-ADVANCE-STEEL-FOR-DETAILS-DRAWING

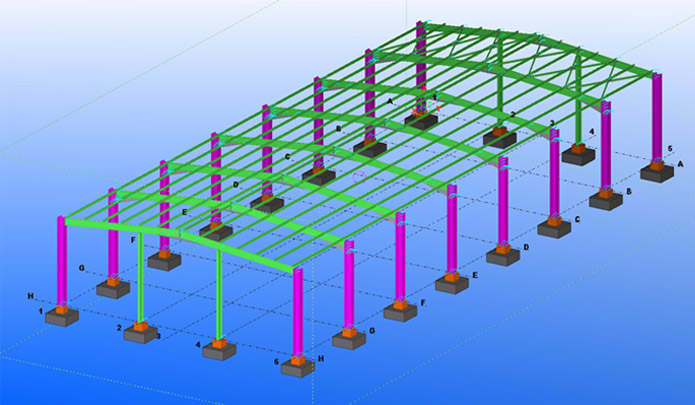

  • MODELING-IN-TEKLA-STRUCTURES-FOR-DETAILS-DRAWING

Our Services:


Our use of Application Software

  • SAP 2000
  • S-Frame, S-Steel and S-Concrete
  • STAAD Pro
  • DYNA 5
  • RISA
  • ANSYS
  • Descon Brace,Descon Win and Ram Connection
  • Shaft 3D and Foundation 3D
